Model PRS6420 Up to 4 Heat / 2 Cool Heat

Premier Universal Programmable Touchscreen Thermostat
Up to 4 Heat / 2 Cool Heat Pump
Up to 3 Heat / 2 Cool Conventional
Compatibility:
  • Single-stage conventional or heat pump systems
  • Multi-stage heat pump systems up to 4 heat/2 cool
  • Multi-stage conventional systems up to 3 heat/2 cool
  • 250mv – 750mv millivolt heating systems
Product Features:
  • 7 Day, 5-2 Day or Non-Programmable
  • Large 12 sq. in. easy-read touchscreen
  • Auto or manual changeover
  • Bright blue backlight display
  • Humidification control
  • Dehumidification control with overcooling
  • Adjustable over cooling limits
  • Temporary override limits
  • Residential or commercial modes
  • Permanent memory retains settings
  • Adjustable temperature limits
  • Indoor or outdoor remote sensing
  • SpeedSet programming
  • Separate user and installer reset buttons
  • User selectable service monitors
  • Programmable and circulating fan modes
  • Programmable extended hold mode
  • Adaptive Recovery Mode (ARM™)
  • Auxiliary heat fossil fuel option
  • Hardwire or battery power
  • Multi-level keypad lockout
  • Auxiliary “A” terminal for economizer, fresh air or output control
  • Heat pump balance points
  • Trilingual packaging and instructions
  • ROHS Compliant
Terminal
Designations
Architectural
Specificatons
Product
Specificatons
Shipping
Information
Cross
Reference
FREE Contractor
Branding
Architectural Specifications
The universal auto changeover thermostat shall be a PROSTAT, model number PRS6420, 4.13” high x 6.13” wide x 1.38” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermostat shall be compatible with low voltage single stage or multistage gas, oil, or electric conventional heating or cooling systems, up to three stages of heating and two stages of cooling, and heat pump systems with up to four stages of heating and two stages of cooling. Also compatible with 250mv – 750mv millivolt heating only systems. The thermostat shall have a bright blue backlight display, touchscreen with SpeedBar®, separate sub-base and multi-level keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C). Operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, residential or commercial setup modes, permanent non-volatile memory to retain user settings, filter, UV and humidifier pad check monitor, adaptive recovery mode (ARM™ ), programmable independent fan control, humidification and dehumidification control, residual cooling fan delay, indoor or outdoor remote sensor capability, auxiliary heat fossil fuel programming, and compressor power outage protection. A front reset button will return user settings to default values when pressed.
Product Specifications
Dimensions 4.13” x 6.13” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
5 amp total maximum load (all terminals)
AC Power 18-30 Volt A C
DC Power 3.0 Volts DC
(2 “AA” Alkaline batteries included)
Compatibility Heat pump systems up to 4 heat/2 cool
Conventional systems up to 3 heat/2 cool
250mv – 750mv millivolt heating systems
Control Range 45° to 90° F ( 7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 1st Stage: .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
2nd, 3rd and 4th Stage: 1°, 2°, 3°, 4°, 5°, or 6° F (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations A/D, H, G, Rc, Rh, W2/AUX2, W3/O/B, Y1, Y2, W1/E/AUX1, C, L, S1, S2
Shipping Information
Individual Carton
Individual Carton Dimensions 6.8” x 4.7” x 2.0”
Individual Carton Weight 1.2 lbs.
Master Carton
Master Carton Quantity 6
Master Carton Dimensions 14.3” x 6.6” x 5.4”
Master Carton Cubic Feet .26
Master Carton Weight 8 lbs.
ProStat PRS6420 Replaces*
BrandModel
Honeywell® Equivalent TB7100U, TB7220U, TH8110R, TH8320R, TH8321R
Emerson® Equivalent 1F97-1277, 1F95-1277, 1F95-1280, 1F95-1291
Pro1® Equivalent T905, T955, T955S
Ventstar® Equivalent T7800, T8800
Lux® Equivalent PSP711TS, PSPU721T, PSPU732T, P721UT
*Verify specific application requirements. All trademarks are the property of their respective owners.
FREE Contractor-Branded Thermostat Doors and Branded Instruction Cards
With ProStat Comfort Controls, there are no minimum purchase requirements for the contractor to advertise 24 hours a day in customers’ homes. Company name and contact information will be readily available when it is time for maintenance or equipment repair.
Participating contractors can permanently pad print up to 3 lines of text (30 characters per line) on ProStat Comfort Control’s removable doors. Non-branded quick reference cards are already included with our thermostats.
For custom-branded cards, simply send a file of your company’s logo to contractorbranding@prostatbranding.com. Upon receipt and verification, you will receive the custom-printed cards absolutely FREE.
Pad Printed Doors
  • Commit to purchasing ProStat thermostats from your local distributor.
  • Download the Contractor Branding Services Form then fill out and fax to 1-866-268-8897 or E-mail.
  • After placement of order, you will receive 50 contractor-branded doors absolutely FREE, with no set-up fees or separate branding charges.
  • Please allow 2-3 weeks for delivery.
Full-color Instruction Cards
  • Commit to purchasing ProStat thermostats from your local distributor.
  • Download the Contractor Branding Services Form then fill out and fax to 1-866-268-8897 or E-mail.
  • Email a high resolution logo in TIF, JPG or EPS format (see form for instructions).
  • Contractors will receive 50 full color Contractor Branded Quick Reference Cards for FREE, with no set-up fees or branding charges.
  • Please allow 2-3 weeks for delivery.

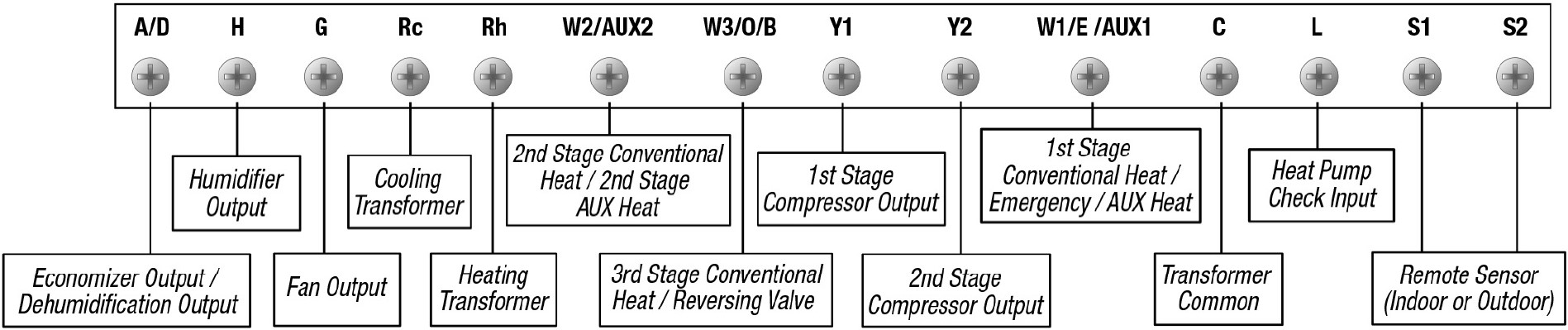

Terminal Designations
Architectural Specifications
Architectural Specifications
The universal auto changeover thermostat shall be a PROSTAT, model number PRS6420, 4.13” high x 6.13” wide x 1.38” deep, powered with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). In the event of a power failure, the unit shall retain all user, installer and program settings. The thermostat shall be compatible with low voltage single stage or multistage gas, oil, or electric conventional heating or cooling systems, up to three stages of heating and two stages of cooling, and heat pump systems with up to four stages of heating and two stages of cooling. Also compatible with 250mv – 750mv millivolt heating only systems. The thermostat shall have a bright blue backlight display, touchscreen with SpeedBar®, separate sub-base and multi-level keypad lockout. Temperature control range shall be between 45° and 90° F (7° and 32° C), accuracy of +/- 1° F (+/- .5° C). Operating humidity range between 5% and 95% relative humidity. The thermostat shall include separate installer and user setup modes, residential or commercial setup modes, permanent non-volatile memory to retain user settings, filter, UV and humidifier pad check monitor, adaptive recovery mode (ARM™ ), programmable independent fan control, humidification and dehumidification control, residual cooling fan delay, indoor or outdoor remote sensor capability, auxiliary heat fossil fuel programming, and compressor power outage protection. A front reset button will return user settings to default values when pressed.
Product Specifications
Product Specifications
Dimensions 4.13” x 6.13” x 1.38”
Electric Rating 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
5 amp total maximum load (all terminals)
AC Power 18-30 Volt A C
DC Power 3.0 Volts DC
(2 “AA” Alkaline batteries included)
Compatibility Heat pump systems up to 4 heat/2 cool
Conventional systems up to 3 heat/2 cool
250mv – 750mv millivolt heating systems
Control Range 45° to 90° F ( 7° to 32° C)
Display Range 40° to 99° F (5° to 37° C)
Accuracy +/- 1° F (+/- .5° C)
Temperature Differential 1st Stage: .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
2nd, 3rd and 4th Stage: 1°, 2°, 3°, 4°, 5°, or 6° F (.5°, 1°, 1.5°, 2°, 2.5°, or 3° C)
Storage Temperature 14° to 140° F (-10° to 60° C)
Operating Humidity 5% to 95% Relative Humidity
Terminations A/D, H, G, Rc, Rh, W2/AUX2, W3/O/B, Y1, Y2, W1/E/AUX1, C, L, S1, S2
Shipping Information
Shipping Information
Individual Carton
Individual Carton Dimensions 6.8” x 4.7” x 2.0”
Individual Carton Weight 1.2 lbs.
Master Carton
Master Carton Quantity 6
Master Carton Dimensions 14.3” x 6.6” x 5.4”
Master Carton Cubic Feet .26
Master Carton Weight 8 lbs.
Cross Reference
ProStat PRS6420 Replaces*
BrandModel
Honeywell® Equivalent TB7100U, TB7220U, TH8110R, TH8320R, TH8321R
Emerson® Equivalent 1F97-1277, 1F95-1277, 1F95-1280, 1F95-1291
Pro1® Equivalent T905, T955, T955S
Ventstar® Equivalent T7800, T8800
Lux® Equivalent PSP711TS, PSPU721T, PSPU732T, P721UT
*Verify specific application requirements. All trademarks are the property of their respective owners.
FREE Contractor Branding
FREE Contractor-Branded Thermostat Doors and Branded Instruction Cards
With ProStat Comfort Controls, there are no minimum purchase requirements for the contractor to advertise 24 hours a day in customers’ homes. Company name and contact information will be readily available when it is time for maintenance or equipment repair.
Participating contractors can permanently pad print up to 3 lines of text (30 characters per line) on ProStat Comfort Control’s removable doors. Non-branded quick reference cards are already included with our thermostats.
For custom-branded cards, simply send a file of your company’s logo to contractorbranding@prostatbranding.com. Upon receipt and verification, you will receive the custom-printed cards absolutely FREE.
Pad Printed Doors
  • Commit to purchasing ProStat thermostats from your local distributor.
  • Download the Contractor Branding Services Form then fill out and fax to 1-866-268-8897 or E-mail.
  • After placement of order, you will receive 50 contractor-branded doors absolutely FREE, with no set-up fees or separate branding charges.
  • Please allow 2-3 weeks for delivery.
Full-color Instruction Cards
  • Commit to purchasing ProStat thermostats from your local distributor.
  • Download the Contractor Branding Services Form then fill out and fax to 1-866-268-8897 or E-mail.
  • Email a high resolution logo in TIF, JPG or EPS format (see form for instructions).
  • Contractors will receive 50 full color Contractor Branded Quick Reference Cards for FREE, with no set-up fees or branding charges.
  • Please allow 2-3 weeks for delivery.
Our Customer Service Department is available to answer any questions that you
may have about our Product Specifications and Warranty.
Give us a call at 1.855.445.2466
*Complete warranty details available from your local branch.
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring obligations.
